Polypropylene pile fibres that flex independently, sealing precisely against sliding and uneven surfaces in windows, doors and shutters.
Find the right seal for your application
Search by SKU code or category to find the right seal for your application.
Downloads, Accreditations & Related Products
Discover related products, access technical documentation and accreditations, and find out how Schlegel's 10-year guarantee gives you added peace of mind.
Woven Brush Piles
Find Out More
Extruded Brush Piles
Polypropylene brush pile on a rigid extruded base. Flexible, low-friction sealing for sliding, tilt-and-turn and casement applications across the full Schlegel range.
Find Out More
Coilable Brush Piles
Flex-Brush coilable brush pile seals from Schlegel deliver flexible, long-lasting draught and dust sealing for curved, heavy-duty and large-format door applications.
Find Out More
Combination Brush Piles
Polypropylene brush pile seals combining woven or extruded bases with optional fins, for reliable draught-proof performance on sliding and fitted fenestration.
Find Out More
Resources
Find all the information you need at your fingertips for Q-LON, brush pile and extruded seals.
Find Out More
Brochures
Explore Schlegel brochures and accreditation certificates to learn more about our products and manufacturing standards.
Find Out More
Why specify Schlegel brush pile seals?
Schlegel brush pile seals are made from virgin polypropylene yarn and are available in woven and extruded base formats across a range of more than 12 named product types. Each product is manufactured under a Quality Management System certified to ISO 9001 and backed by a 10-year guarantee, making them a specified choice for fabricators working across aluminium, timber and PVC-U fenestration.
Key Benefits
Longer Lasting
Trilobal yarn designs deliver class-leading durability
Higher Performance
Silicone-treated yarns as standard
Better Compression Recovery
Because of unique manufacturing processes
Endurance
Superior UV resistance performance
Effortless Glide
Due to low friction materials
Versatile
Seal against uneven surfaces
Bespoke Service
Product customisation available
Sustainable
Fully recyclable
Water Resistance
Non-obsorption of moisture
Choice
Huge range of sizes, colours and profiles
- Materials
- Colours
- Range Overview
- Downloads
Materials & Colours
- Available in many different widths and heights.
- Different densities depending on seal type, width and mounting distance.
- Heat setting for recovery after compression.
- With optional adhesive backing based on hot-melt (HM) glue technology.

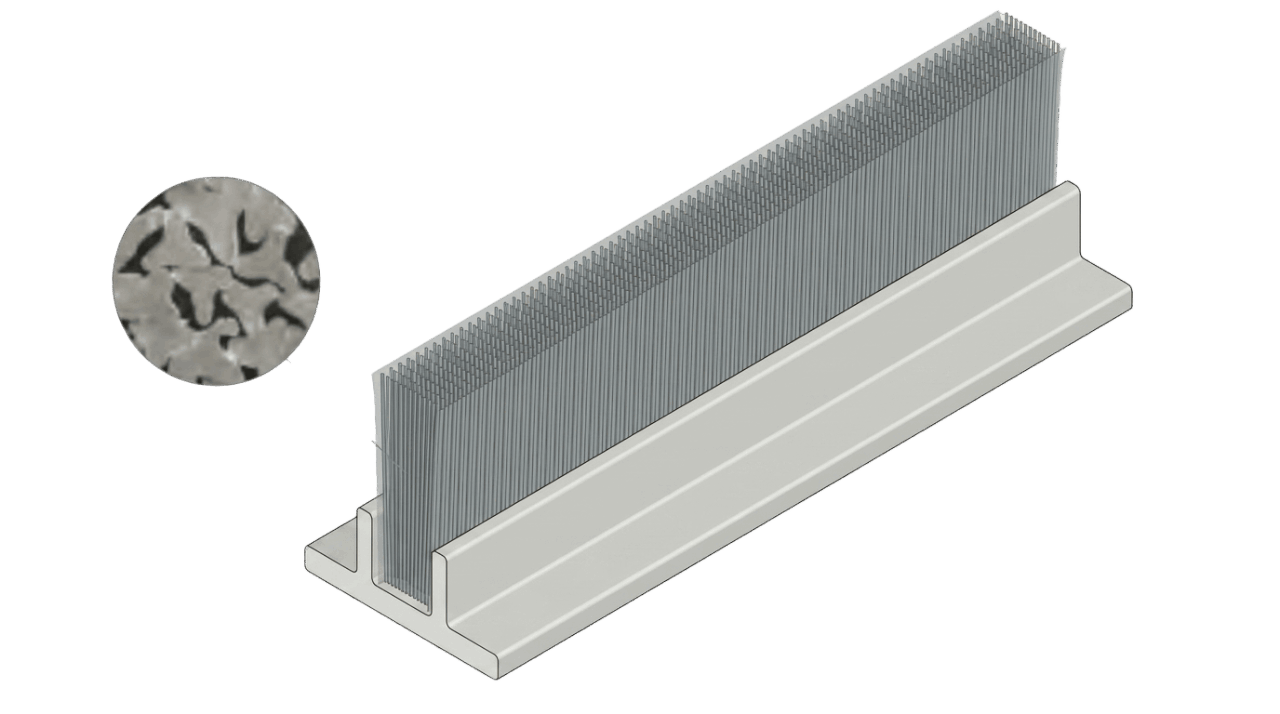

Click the hotspots to discover more
Monofilament
Untreated for increased stiffness.
Multifilament
Standard soft multifilament yarn.
Brush pile seal colour options
Standard soft multifilament yarn colours include grey and black while non-standard multifilament colours, available subject to minimum order quantities, include white, brown and beige. Contact our team for lead times and minimum order requirements on non-standard colours.
Standard
Black - Standard RAL 9005
Grey - Standard RAL 7045
Product Specific
Brown - Extra RAL 8028
Beige - Extra RAL 1011
White - Extra 9003
Brush pile seal product range
The Schlegel brush pile range covers woven and extruded base products across sliding windows, sliding doors, window coverings, furniture and shutter applications. Use the selector table below to identify the correct product for your frame type and sealing requirement.
Download the full Schlegel Brush Pile Seals brochure for detailed product specifications, dimensional data, a complete colour reference chart and the brush pile selector guide covering all woven and extruded product types for aluminium, PVC-U and timber applications.
Virgin polypropylene yarn as standard
Every Schlegel brush pile seal is manufactured from virgin polypropylene (PP) yarn, not recycled material, ensuring consistent fibre density and reliable performance across the stated brush height range from 3.0 mm to 20.0 mm.
Silicone treatment for moisture, mould and mildew resistance
The polypropylene yarn in Schlegel brush pile seals is treated with silicone to resist water penetration, mould growth and mildew. This treatment maintains sealing performance in exposed external applications.
Fin configurations for higher air tightness
Optional central and lateral fin positions are available across the Fin-Seal, G3, G3-QF, Fin-Pile and Bi-Fin product series to sit at pile height or 1 mm above.

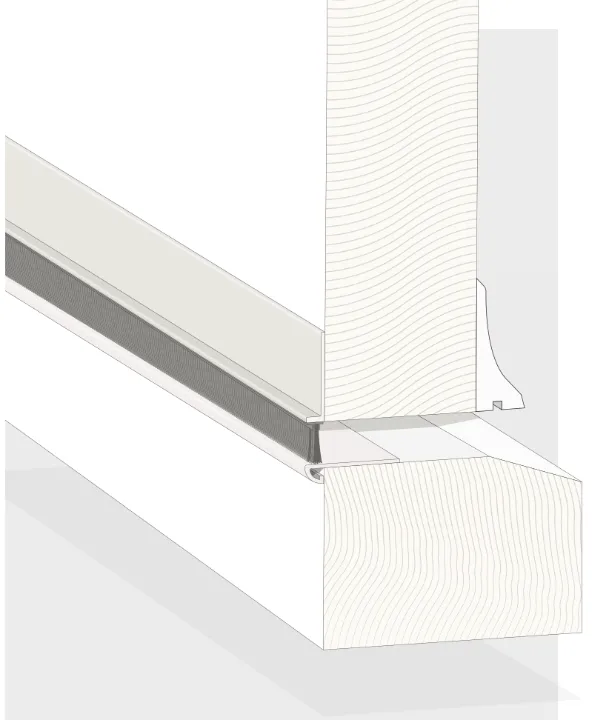

Suitable for timber, PVC-U and aluminium frame systems
The brush pile range is designed to perform across all principal fenestration frame materials. Woven base products suit surface-mount and groove-fit timber applications, while extruded base profiles are specified for machine-fitted PVC-U and aluminium lines.
Guarantee and compliance
Brush pile seals are EN 12365 compliant for specification and carry a 10-year product guarantee. Manufacture is certified to ISO 9001:2008 for quality management and ISO 14001:2004 for environmental management
Woven brush pile seals: Poly-Bond and Fin-Seal
The Poly-Bond (PB) series uses a soft multifilament polypropylene pile yarn on a woven, reinforced translucent backing, making it suitable for sliding windows, sliding doors, window coverings and furniture. An optional hot-melt adhesive backing simplifies installation without additional fixings. The Fin-Seal (FS) builds on this with one or two integrated polypropylene fins at centre position, improving air tightness across sliding window and door applications. Backing widths of 4.8 mm, 6.7 mm and 6.9 mm are standard, with brush heights from 3.0 mm to 15.0 mm in 0.5 mm increments up to 8 mm, and 1.0 mm increments beyond that.

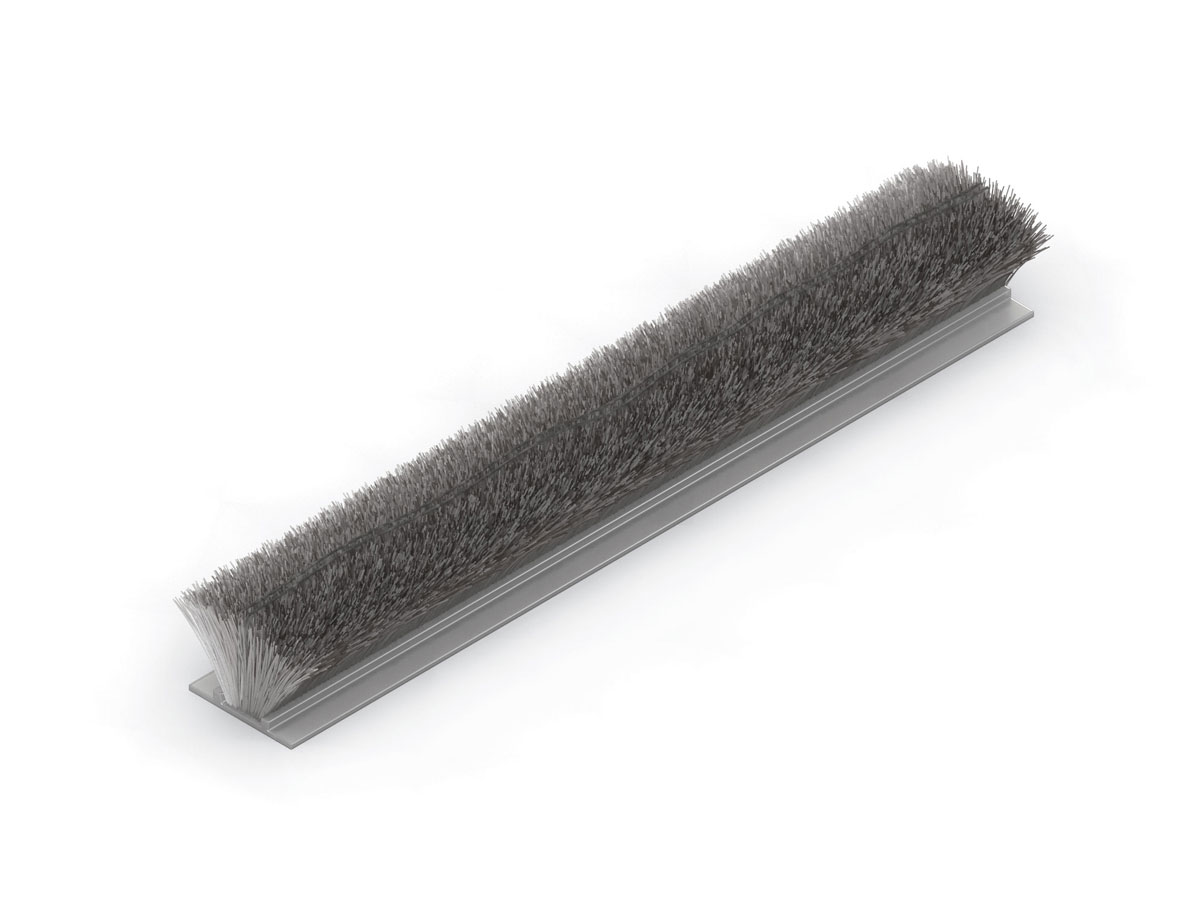

Extruded brush pile seals: G3, G3-QF, Power-Pile, Fin-Pile and Bi-Fin
Schlegel’s extruded brush pile range is designed for fabricators using automated machine insertion, ensuring precise on-centre pile positioning for consistent fitment. Options include the silicone-treated G3, high-performance G3-QF Quadrafin, fin-free Power-Pile with optional adhesive backing, and Bi-Fin with dual lateral fins for enhanced yarn protection and superior weather sealing in demanding sliding applications.
Specialist brush pile seals: Angle-Pile, Dust-Plug, Shutter-Pile and Flex-Brush
Beyond its core sliding window and door range, Schlegel offers specialist brush pile seals for unique applications. These include Angle-Pile for insect screen channels, Dust-Plug for aluminium sliding door corners, Shutter-Pile for roller shutters, flexible coilable Flex-Brush for curved installations, and extruded Skirting-Fringe for narrow-base skirting and fringe sealing where reliable performance is essential.
