What are combination brush pile seals?

Combination brush pile seals from Schlegel join a polypropylene pile with a woven or extruded rigid ABS, PP or PVC-U extruded carrier base, available in surface-fit and kerf-slot configurations to suit aluminium, PVC and timber frames in sliding, tilt-and-turn and shutter applications.

Standard and extended colour options

Standard RAL colour options include black and grey. Extended colour options include white, brown and beige to coordinate with aluminium, PVC and timber frame finishes.

Standard
Black - Standard RAL 9005

Black - Standard RAL 9005

Grey - Standard RAL 7045

Grey - Standard RAL 7045

Product Specific
Brown - Extra RAL 8028

Brown - Extra RAL 8028

Beige - Extra RAL 1011

Beige - Extra RAL 1011

White - Extra 9003

White - Extra 9003

grey brush pile

Application guide: windows, doors and shutters

The Schlegel combination brush pile range covers sliding windows, sliding doors, tilt-and-turn windows, casement doors and shutters. Use the table below to match each seal profile to its intended frame type and opening configuration.

Download the Schlegel Brush Pile brochure, product datasheets and the EN 12365:2003 performance classification guide for full dimensional specifications, compression load data and fin height recommendations for combination brush pile seals.

Key Benefits

Independent pile fibres seal against uneven surfaces

Each fibre moves separately, maintaining contact across irregular or moving frame surfaces.

Low friction for smooth sliding window and door operation

Silicone-treated PP yarn reduces surface drag when sliding

Mould, mildew and water resistance built into the yarn

PP pile treated with silicone repels moisture and resists biological growth over time.

UV stable and chemically inert for long service life

Polypropylene construction resists UV degradation and chemical exposure without deterioration.

Optional fins reduce air infiltration

Central or lateral fins on Fin-Seal and Shutter-Pile products deliver measurably tighter air sealing.

Compatible with aluminium, PVC and timber frames

Backing widths of 4.8 mm, 6.7 mm and 6.9 mm cover the kerf dimensions used across all three main frame materials.

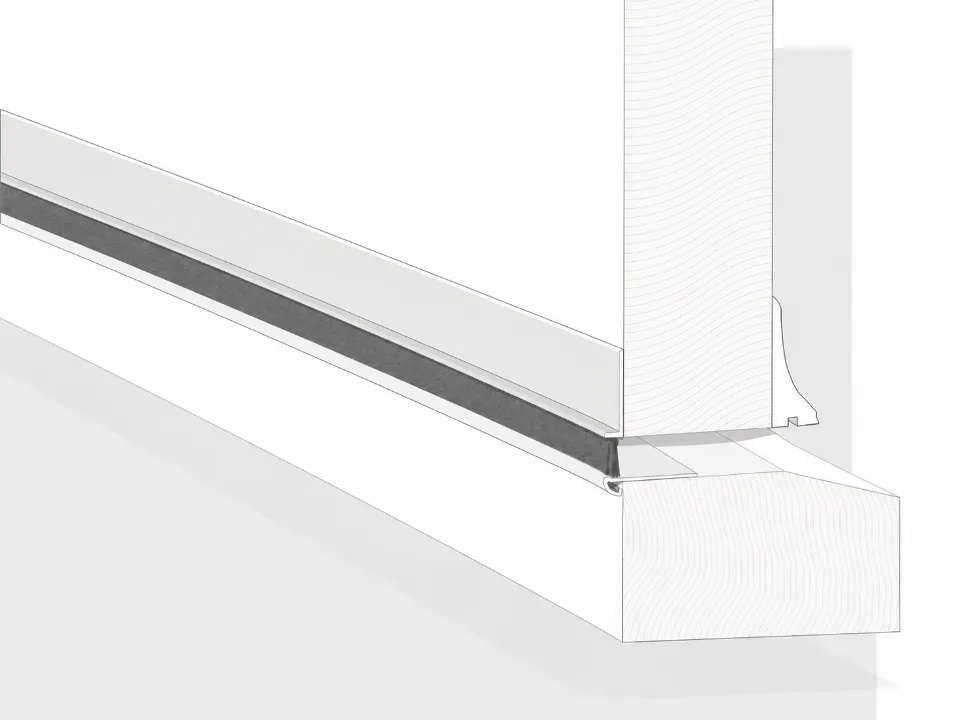

Surface-fit and kerf-slot combination brush pile seals explained

Schlegel combination brush pile seals are available in surface-fit and kerf-slot configurations. Surface-fit options are ideal for retrofit and replacement projects on aluminium, PVC and timber frames, while kerf-slot versions are designed for new window and door manufacture, providing secure, reliable installation across a wide range of applications.

kerf brush pile
brush pile seals

Compliance with EN 12365:2003 and CE marking requirements

Schlegel combination brush pile seals comply with EN 12365:2003, supporting performance classification for windows, doors, shutters and curtain walling. Six-grade testing verifies key sealing properties, helping manufacturers meet CE marking requirements under EN 14351-1:2016 clause 4.15.

Frequently asked questions about combination brush pile seals

Find answers to the most common questions about Schlegel combination brush pile seals, covering materials, fitting methods, fin options and compliance.
